| Bar Size |
Dia. (inch) |
Bar Dia. USA1) |
A (inch) |
B (inch) |
C (inch) |
D (inch) |
E (inch) |
Fmax (inch) |
Gmax (inch) |
Torque
(lb-ft) |
| #5 |
0.625 |
16mm |
1.000 |
1.125 |
2.165 |
1.125 |
3.583 |
--- |
3.000 |
100.00 |
| #6 |
0.750 |
19mm |
1.250 |
1.500 |
2.756 |
1.500 |
4.725 |
--- |
4.000 |
100.00 |
| #7 |
0.875 |
22mm |
1.375 |
1.625 |
2.953 |
1.625 |
4.880 |
--- |
4.500 |
100.00 |
| #8 |
1.000 |
25mm |
1.500 |
1.750 |
3.307 |
1.750 |
5.512 |
11.00 |
5.000 |
200.00 |
| #9 |
1.125 |
29mm |
1.625 |
2.000 |
3.504 |
2.000 |
5.984 |
12.00 |
5.000 |
200.00 |
| #10 |
1.270 |
32mm |
1.750 |
2.125 |
3.504 |
2.165 |
6.181 |
13.00 |
5.250 |
200.00 |
| #11 |
1.410 |
36mm |
1.750 |
2.125 |
3.504 |
2.250 |
6.693 |
14.00 |
5.250 |
200.00 |
| #14 |
1.693 |
43mm |
2.125 |
3.000 |
4.133 |
3.000 |
7.875 |
17.00 |
6.000 |
250.00 |
| #18 |
2.257 |
57mm |
3.000 |
3.500 |
4.921 |
3.500 |
9.843 |
21.00 |
7.000 |
250.00 |
|
Don't make the splice your weak link!
 |
 |
| Bar break: HRC's only acceptable failure mode concluding a tensile test. |
Fast and simple installation of pre-tied reinforcement cages using HRC 410/490. |
| |
|
|
HRC 400 Series - Technically Speaking:
- Exceeds all international known requirements for rebar couplers, including reinforcement design specifications for seismic events
- Designed to exceed the actual stress and strain capacity of all reinforcement grades, independent of variable heats
- Behaves like continuant reinforcement and provides full utilization of the strength and ductility properties of the reinforcement
- It will simply put your tensile test failure outside the splicing area and break in the bar
- Can easily be combined with any other HRC Product series at the other rebar end
|
HRC 400 Series - Practically Speaking:

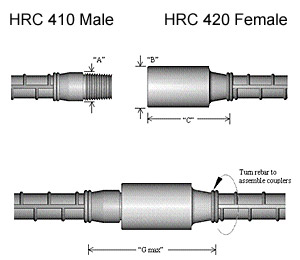

- Taper Threads provide a fast, simple and self-locking installation
- Reliable Quality Control provided by visual inspection and a torque wrench

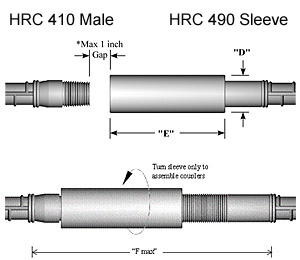

- HRC 490 Position Coupler - Splice long and high dimension reinforcement without turning the bars
- Less sensitive for tolerances and rough field conditions than any other mechanical coupler
- Excellent for use in casting joints
|
|
