Avoid installation errors and problems with field tolerances:
Typical situation at site:
not according to the standards
Left: Reduced anchorage capacity
Right: Full anchorage with T-heads
Improved robustness at overload and accidental conditions:
Concentrated anchorage, no bond length required:
The concentrated and stiff anchorage properties of headed bars are not dependent on a bond length to develop the full tensile strength of the reinforcement in concrete; 100 % anchorage at the head.

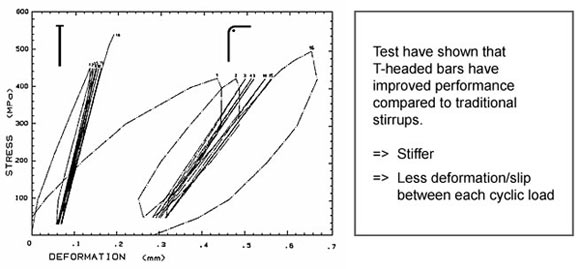

Stiff anchorage:
HRC group has conducted a series of tests documenting the T-headed bars unique strength and performance. Please contact us for more information.
Tab content 3 here Tab content 3 here
Tab content 4 here Tab content 4 here
All products are designed to exceed the actual stress and strain capacity of the rebar.

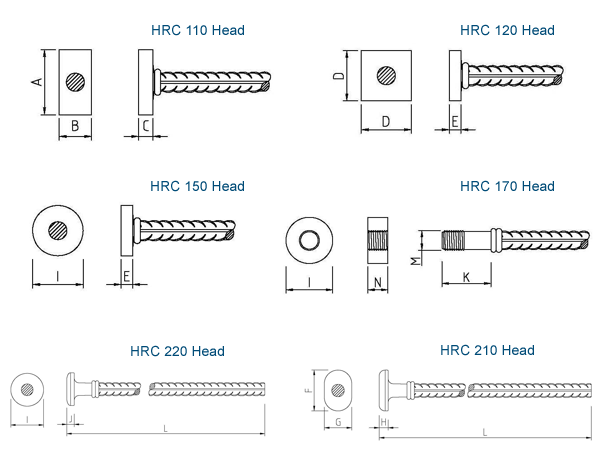

Head dimensions for HRC 100 series are based on concrete compressive strength of 30MPa. Higher concrete strength results in more conservative design.
T-heads of HRC 200 series have improved resistance under fatigue loads.
Mechanical properties that fulfill the ductility requirements for reinforcement steel with a charasteristic yield strength of 500 MPa in accordance to EN 10080.
Can be combined with 180° hook or other HRC products:
Series 100 and 200 are available in lengths 200–18 000 mm.
